A complete Datsun Roadster restoration blending traditional craftmanship with modern technology-featuring 3D scanning, carbon fiber panels, and performance upgrades.
The Roadster prepped with scanning spray for accurate 3D modeling.
Initial digital scan model used for panel recration and design reference.
Front-end scan data highlighting surface geometry widebody flares, split bumper, front splitter, and grille for lighting alignment.
Digital render previewing the Roadster's refined stance and design direction.
Detailed visualization used for bodywork alignment and future carbon fiber molds.
Lower front valance rendering along with widebody fender flares in the final stage with detail added.
Example of printed component produced directly from 3D scan modeling.
Body Preparation & Removal
Temporary body bracing was installed before lifting the body from the chassis, preserving body geometry throughout disassembly. With the body removed, unrestricted access was gained for chassis development and drivetrain packaging.

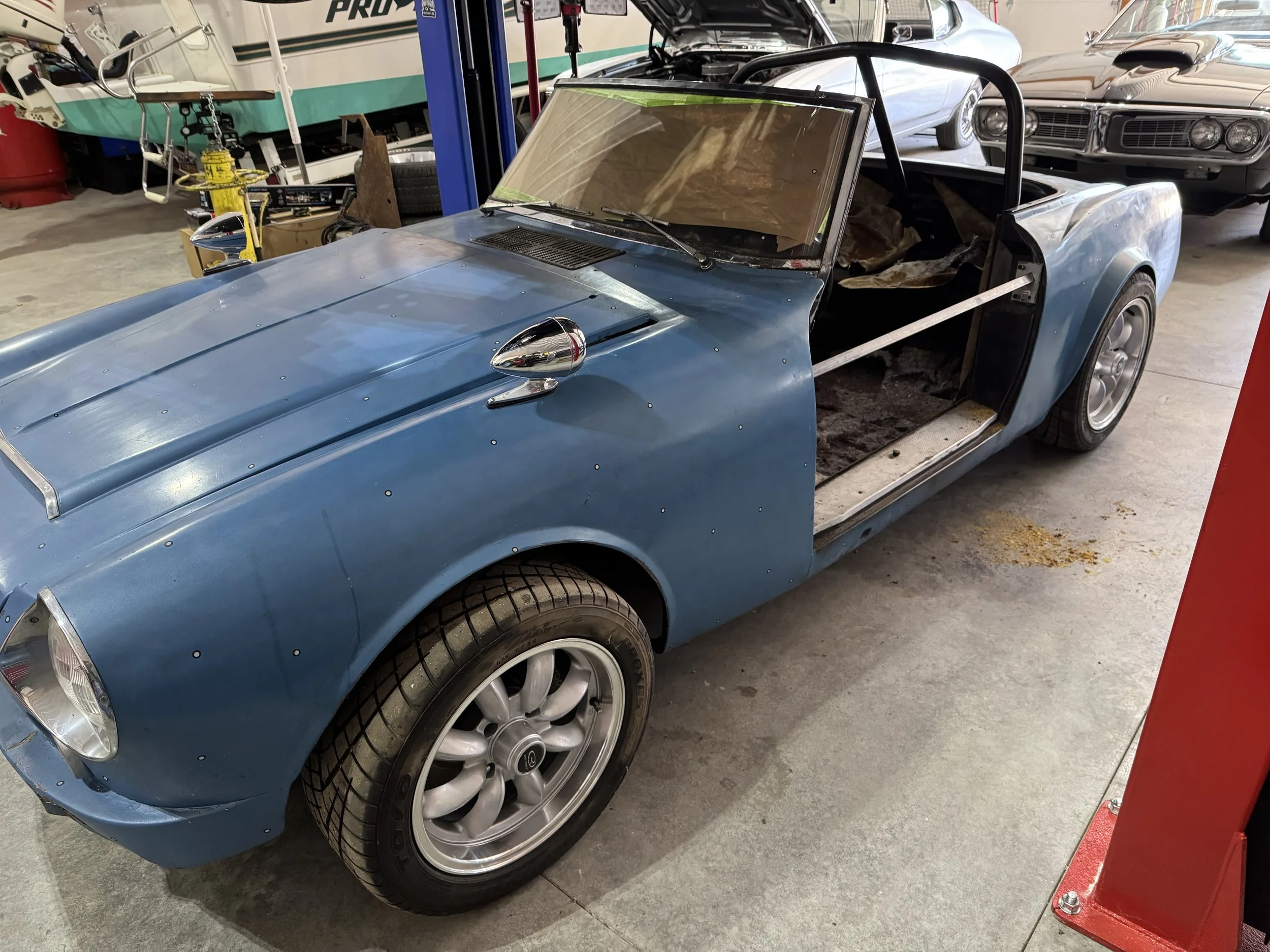

Temporary body bracing installed before chassis separation.

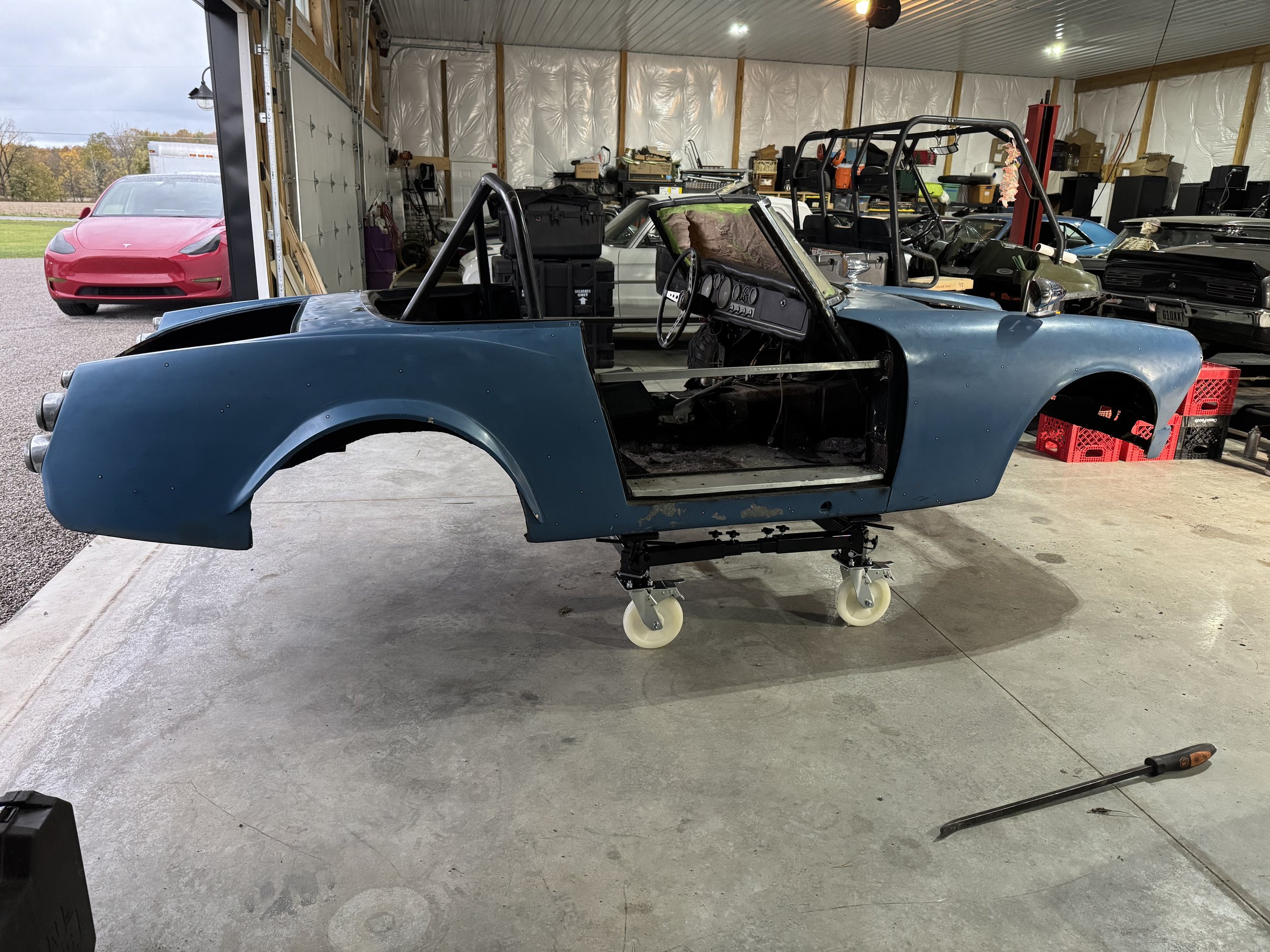

Body separated from the chassis for structural modifications.
Drivetrain Packaging
The SR20DET and Nismo 6-speed transmission were mocked into the chassis to establish engine location, driveline angle, transmission tunnel dimensions, and future turbocharger packaging before final chassis fabrication.

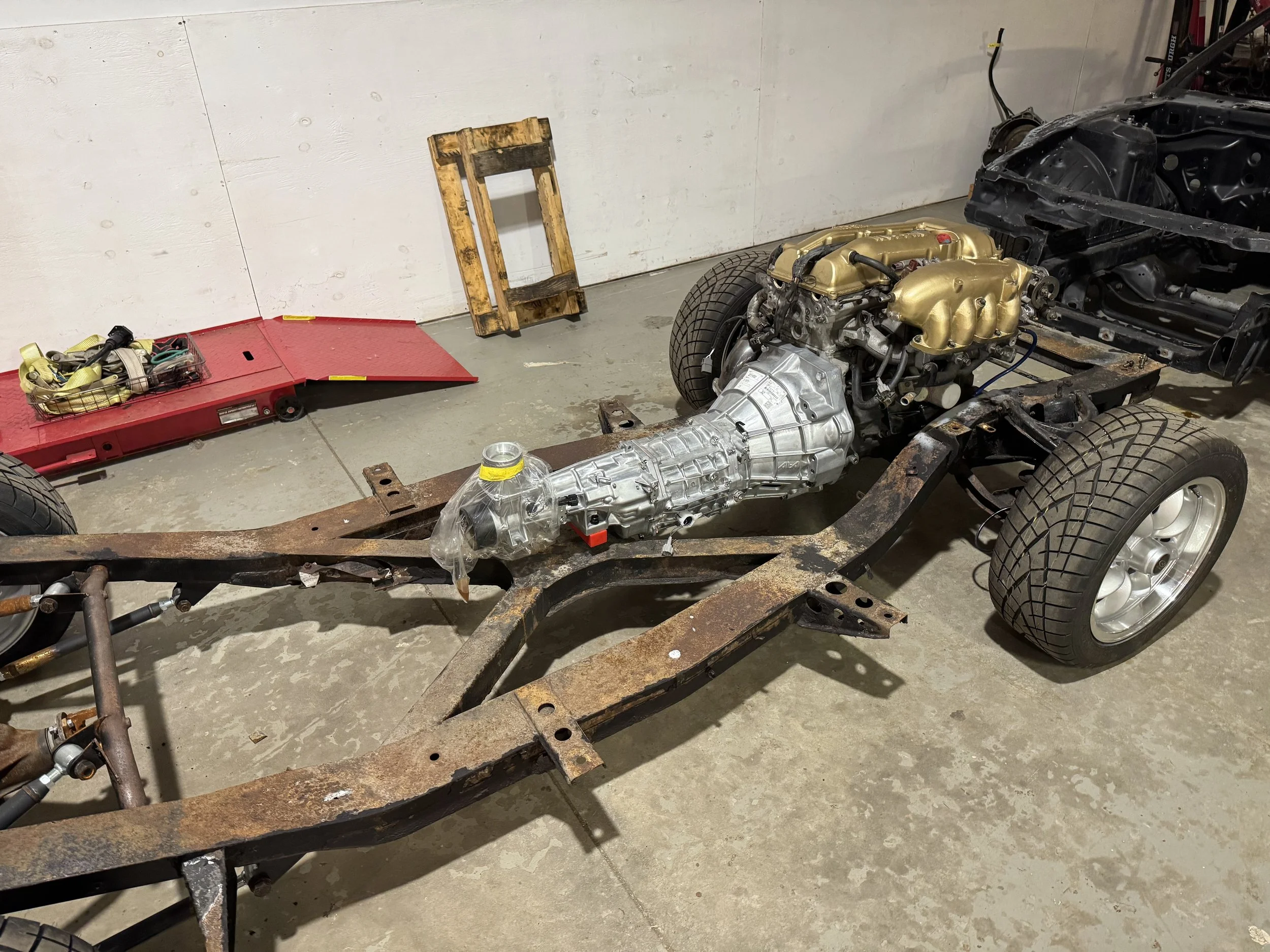

The first complete drivetrain mock-up establishes engine position, transmission placement, and overall chassis packaging before permanent fabrication begins.

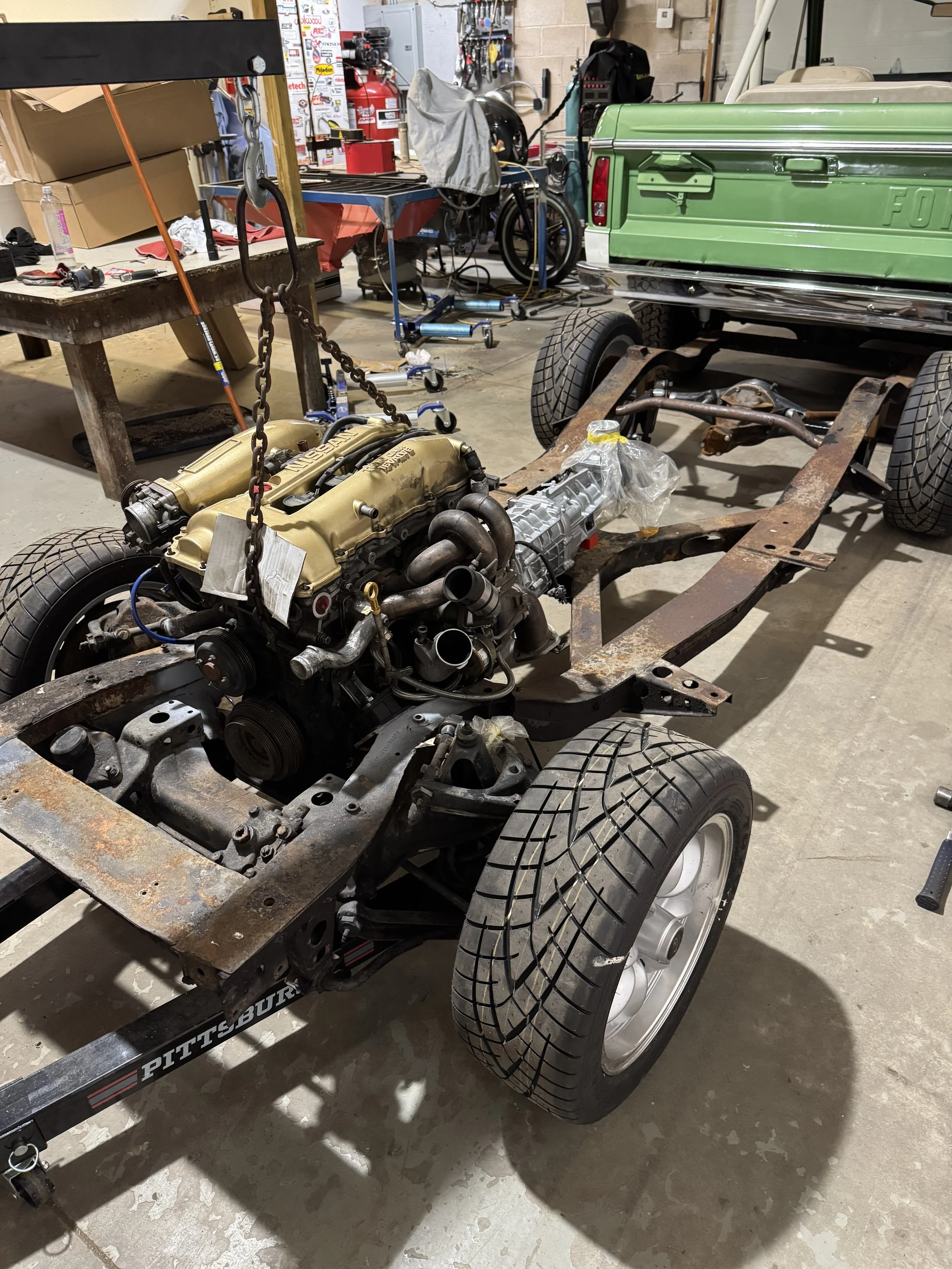

Mocking the drivetrain into the chassis verifies steering clearance, transmission fitment, and available space for the turbocharger, exhaust manifold, and supporting systems.
